Description

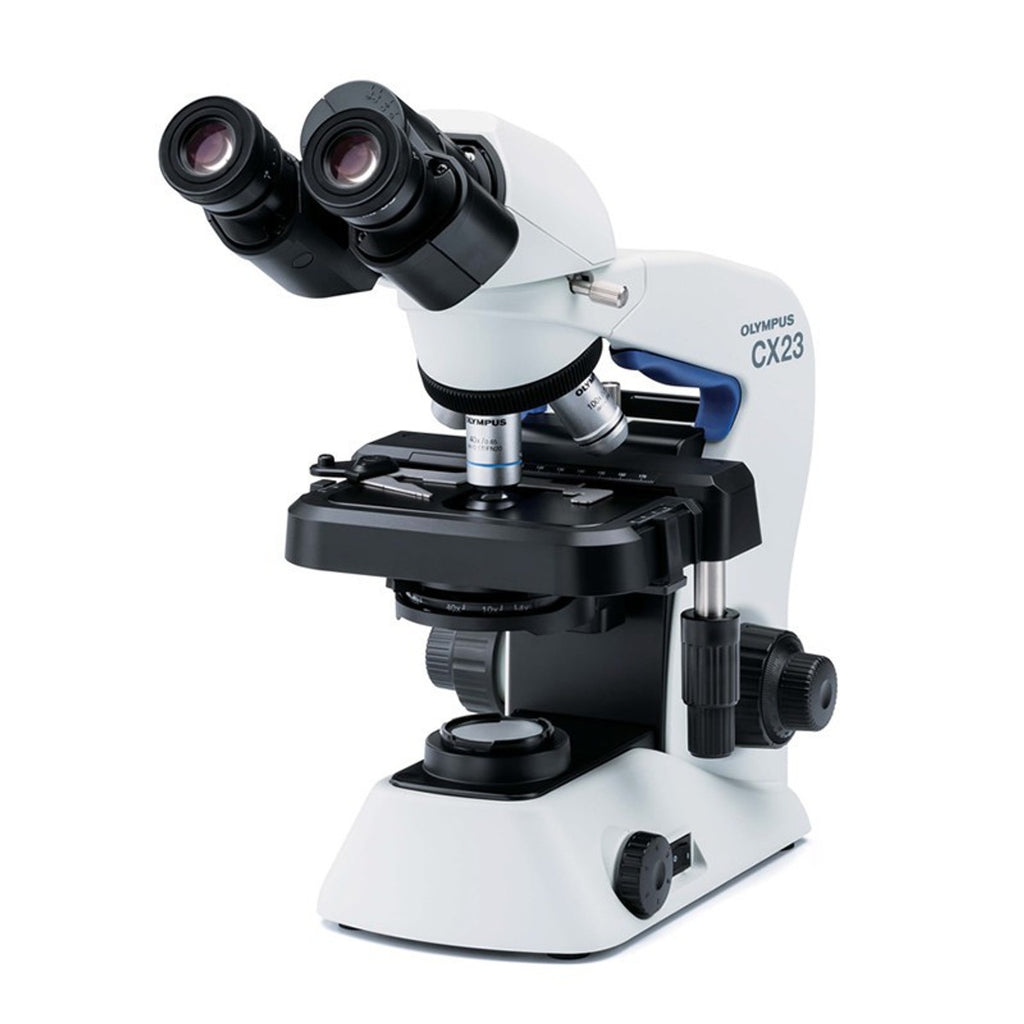

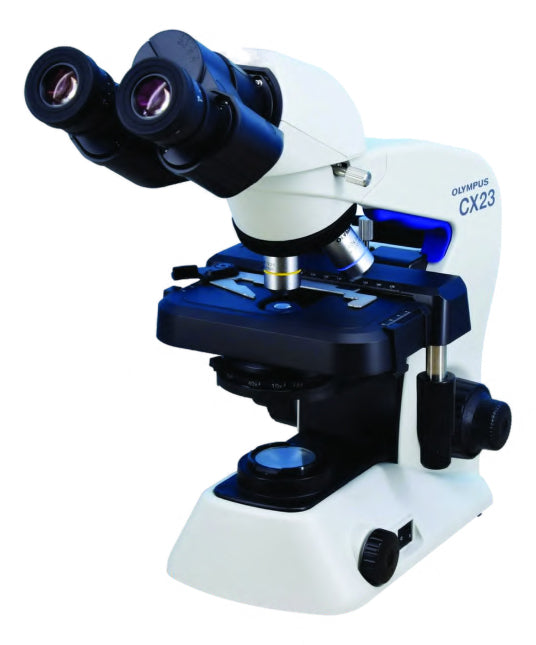

Olympus CX23 Binocular Microscope
Key Features
Viewing Head: Infinity Optical System
Viewing Head Angle: 30° inclined binocular tube
Interpapillary Distance: 48 – 75 mm
Eyepoint Adjustment: 370.0 – 432.9 mm
Nosepiece: Revolving, fixed quadruple nosepiece with inward tilt
Eyepieces: 10X with Field Number (FN) 20 (anti-fungus)
Objectives:
4x, NA: 0.10, WD: 27.8 mm (Infinity Plan Achromat, anti-fungus)
10x, NA: 0.25, WD: 8.0 mm (Infinity Plan Achromat, anti-fungus)
40x, NA: 0.65, WD: 0.6 mm (Infinity Plan Achromat, anti-fungus)
100x Oil, NA: 1.25, WD: 0.13 mm (Infinity Plan Achromat, anti-fungus)
Stage: Stage height movement (coarse movement stroke: 15 mm), coarse
adjustment limit stopper, torque
Condenser: Abbe condenser NA 1.25 with oil immersion
Body: Aluminum die-casting metal frame with protective covering
Application: Ideal for magnifying and examining specimens in scientific research, medical diagnostics, and educational settings.
