Description

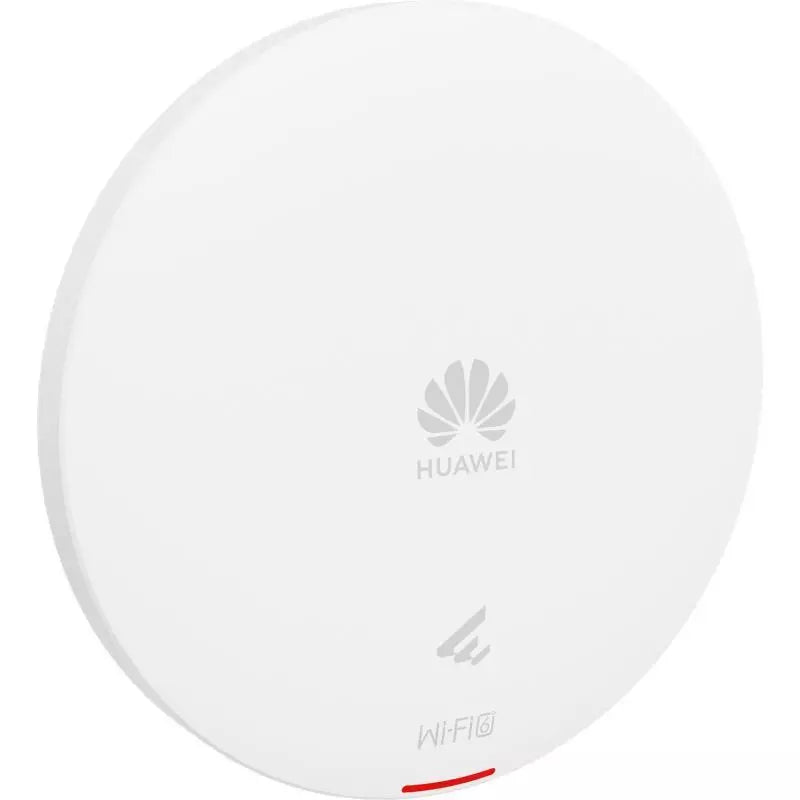

Huawei eKitEngine AP361 Wireless Access Point - Wi-Fi 6, Dual Band 2.4 GHz, 5 GHz
Key Features
Ports:

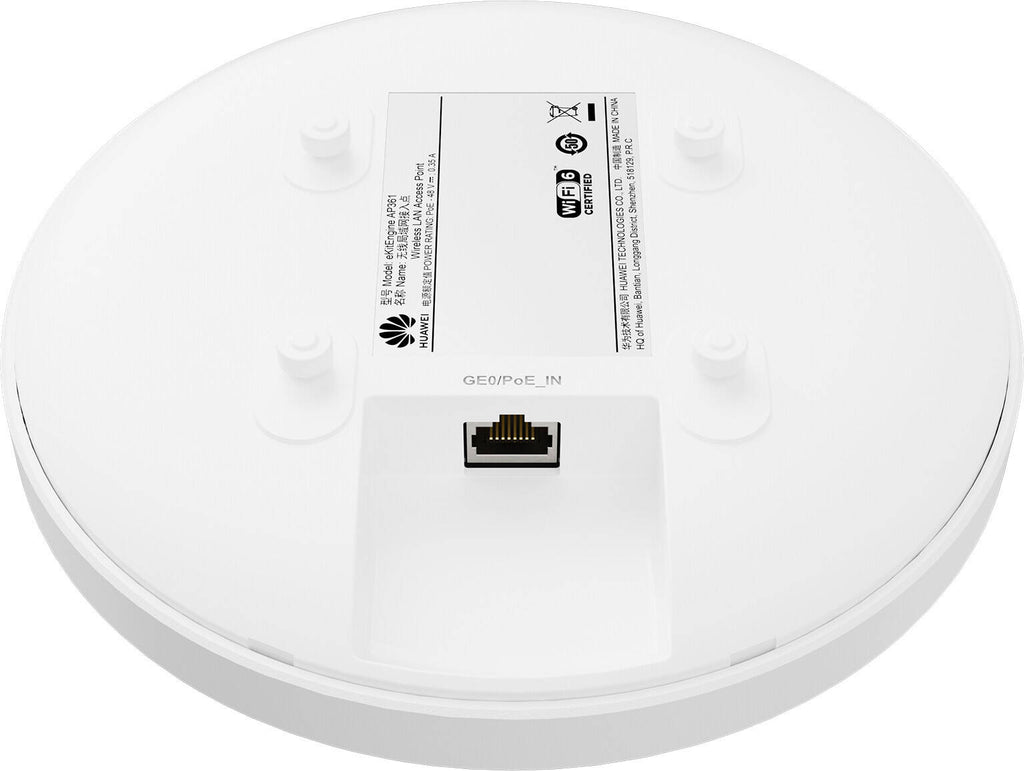

- GE0/PoE_IN: RJ45 connector supporting 10/100/1000M auto-sensing Ethernet and PoE input.
Indicators and Buttons:
- System Indicator: Changes colors and blinking patterns to indicate different statuses and operations, including system resets, operational modes, software upgrades, and fault conditions.
- Reset Button: Allows for easy resetting of the device or restoring to factory settings.
Technical Specifications:
- Maximum Power Consumption: 8.8 W
- Heat Dissipation: 28.5 BTU/hour
- Storage: NAND Flash 256 MB
- Power Supply Mode: PoE compliant with 802.3af
- Service Port Surge Protection: Up to 4 kV
Operating Conditions:
- Temperature: Operates between 0°C to 40°C (32°F to 104°F)
- Humidity: 5% RH to 95% RH non-condensing
- Altitude: Usable from -60 m to +5000 m (-196.85 ft to +16404.20 ft)
Networking Capabilities:
- Frequency Bands: 2.4 GHz and 5 GHz dual bands with MIMO technology
- Wi-Fi Standards: Supports 802.11b/g/n/ax on 2.4 GHz and 802.11a/n/ac/ac Wave 2/ax on 5 GHz
- Maximum Data Transfer Rates: 575 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz
Security Features:
- Security Protocols: Includes 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA2, WPA2-PSK, WPA3, WPA3-SAE
- Intrusion Prevention and Detection: WIPS and WIDS to maintain secure wireless connections.
Design and Compliance:
- Color: White
- Compliance: Meets REACH, RoHS, and WEEE standards.
Package Contents:
- Included: AP361 unit, quick start guide
Usage and Applications:
Ideal for extensive indoor environments requiring robust wireless connectivity and security, such as offices, educational institutions, and retail spaces. Its design and capabilities ensure it can handle multiple devices and high traffic with ease.
