Huawei eKit S380-L4T1T Network Gateway - 1*GE WAN, 4*GE LAN, Up To 150 Users, Firewall and Forwarding Performance, 2Gbps

Huawei eKit S380-L4T1T Network Gateway - 1*GE WAN, 4*GE LAN, Up To 150 Users, Firewall and Forwarding Performance, 2Gbps

Key Features

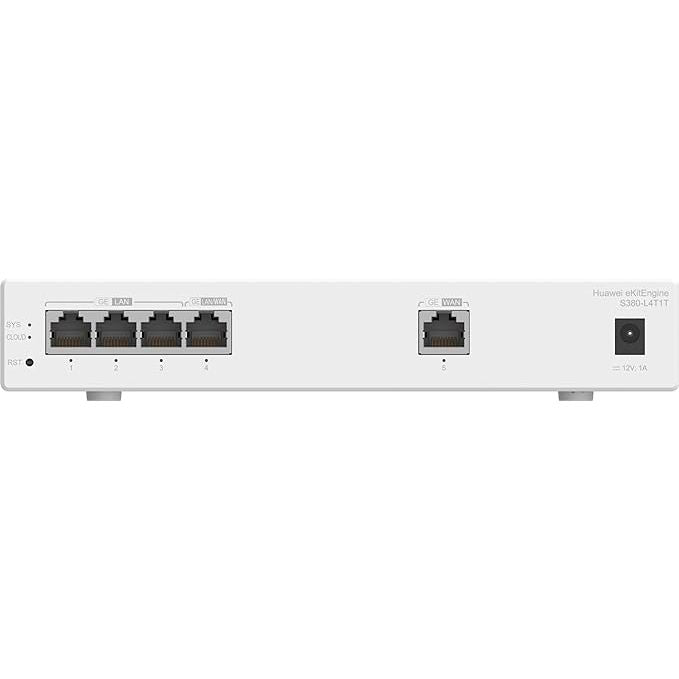

• Components:

  • CLOUD Indicator
  • SYS Indicator
  • RST Button:
    • NOTICE: To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button.
  • Three GE LAN Electrical Ports
  • One GE LAN/WAN Electrical Port
  • One GE WAN Electrical Port
  • Port Indicator
  • Power Adapter Socket
    • NOTE: Use the power adapter (12 V 1 A) delivered with the device.
  • Ground Screw

• Ports:

  • GE LAN Electrical Port: RJ45, a GE LAN electrical port sends and receives LAN service data at 10/100/1000 Mbit/s. Available components: Ethernet cable.
  • GE WAN Electrical Port: RJ45, a GE WAN electrical port sends and receives WAN service data at 10/100/1000 Mbit/s. Available components: Ethernet cable.
  • GE LAN/WAN Electrical Port: RJ45, a GE LAN/WAN electrical port sends and receives LAN or WAN service data at 10/100/1000 Mbit/s. Available components: Ethernet cable.

• Indicators and Buttons:

  • SYS (System Status Indicator)
    • Off: The system is not running or is in the reset state.
    • Green (Fast Blinking): The system is in the power-on loading or reset startup state.
    • Green (Slow Blinking): The system is running normally.
    • Green (Steady On): During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 15 seconds.
    • Red (Steady On): The device cannot be started or the power supply is faulty.
  • Cloud Indicator
    • Off: The device is not in the cloud management state.
    • Blue (Fast Blinking): The device is connecting to the cloud.
    • Blue (Slow Blinking): The device is in the cloud management state.
    • Blue (Steady On): The network is connected, and the WAN port obtains an IP address.
    • NOTE: This function is available in V600R023C00 and later versions.
  • Port Indicator
    • Off: The port is not connected or has been shut down.
    • Green (Steady On): A link has been established on the port.
    • NOTE: During device startup, all port indicators are steady green for about 2 seconds and then off, indicating that service initialization is complete.
    • Green (Blinking): The port is sending or receiving data.

• Power Supply System: The device is powered by the power adapter delivered with the device.

• Heat Dissipation System: The device has no fans and uses natural heat dissipation.

• Technical Specifications:

  • Dimensions without Packaging (H x W x D):
    • Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
    • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
  • Dimensions with Packaging (H x W x D): 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
  • Chassis Height [U]: 0.8 U
  • Chassis Material: Metal
  • Weight without Packaging: 0.8 kg (1.76 lb)
  • Weight with Packaging: 1.0 kg (2.2 lb)
  • Typical Power Consumption: 5.99 W
  • Typical Heat Dissipation: 27.3 BTU/hour
