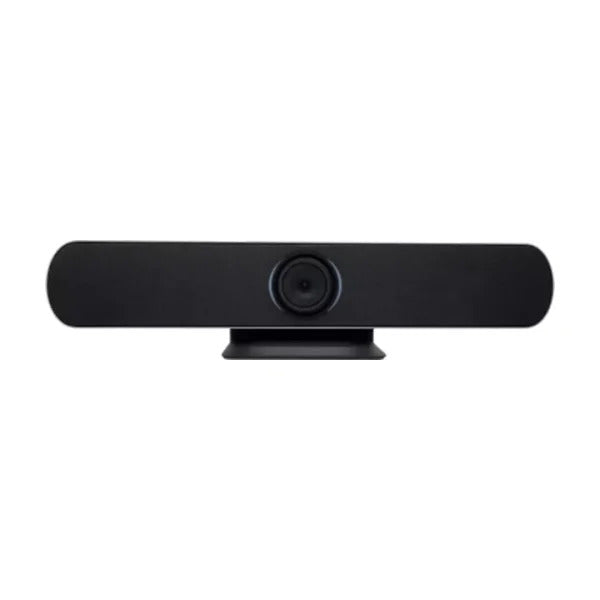

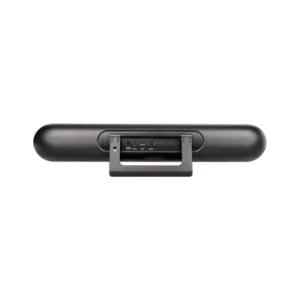

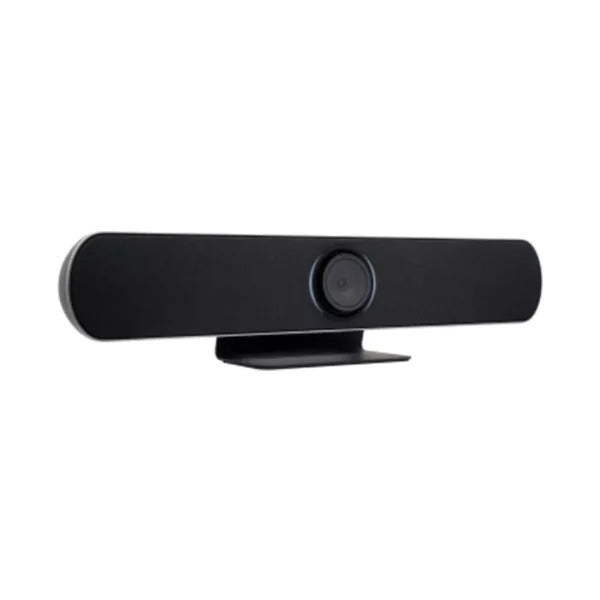

Dahua DH-VCS-C5A0 4K UHD Integrated USB Video Conferencing Camera
Product Specifications
- Image Sensor: 1/2.5-inch CMOS sensor for capturing high-quality video
- Effective Pixels: 8.51 megapixels
- Video Resolution: Supports 4K/30fps, 1080p/30fps, and 720p/30fps
- Zoom: 5x optical zoom
- Field of View: 121° diagonal (DFOV), 110° horizontal (HFOV), 75° vertical (VFOV)
- Pan/Tilt: Mechanical PTZ (MPT) and ePTZ with ±15° horizontal/pitch movement
- Noise Reduction: 2D and 3D digital noise reduction for clearer images
- Video Compression Formats: H.264, MJPEG, YUY2, NV12
- Signal-to-Noise Ratio: ≥ 55dB
- Backlight Compensation: Supported
- Microphone: Built-in beamforming mic with 6-meter pickup range
- Speaker: Full-frequency speaker with 96 dB SPL at 0.5 meters
- USB Protocols: UVC 1.1 to 1.5 for compatibility and PTZ control
- USB Audio: 32KHz sampling rate, UAC1.0 supported
- Connectivity: 1 x USB 3.0 Type-C, 1 x USB 2.0 Type-A, 1 x HDMI (v1.4b)
- Wireless Communication: Bluetooth 5.0
- Installation Options: Desktop, wall-mount, or TV mount
- Power Supply: DC 12V, 2A
- Operating Temperature: 0°C to 40°C
- Storage Temperature: –40°C to 60°C
- Dimensions: 600mm × 135mm × 117mm
- Net Weight: 2.5kg
- Security: Equipped with Kensington lock for safety
- In the Box: USB cable
