Description

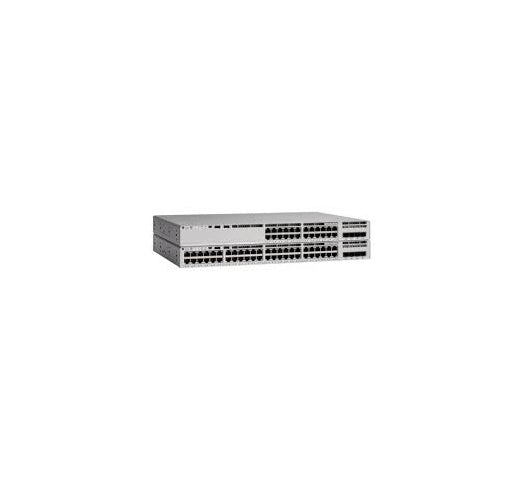

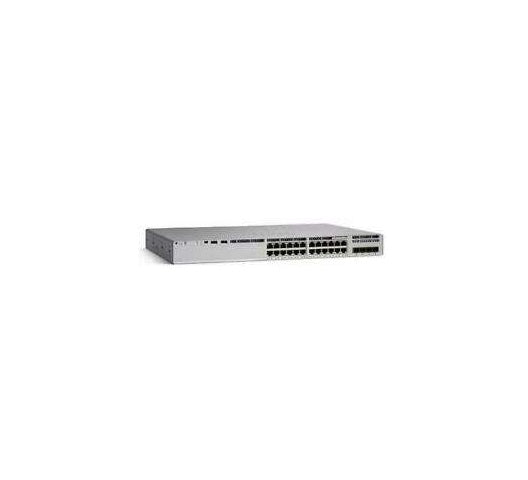

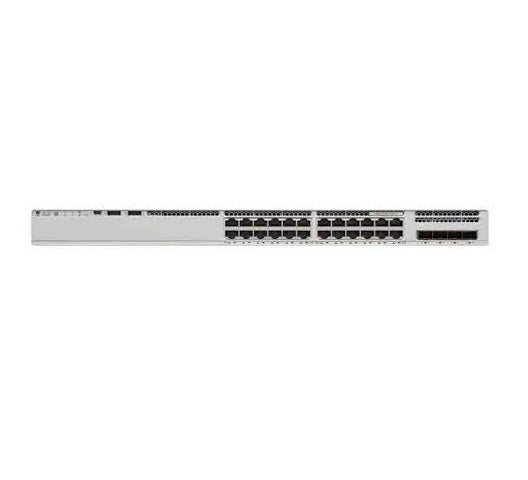

Cisco C9200L-24P-4G-E Catalyst 9200 Network Essentials Switch
Key Features
C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Cisco C9200L-24P-4G-E Catalyst 9200 Switch specifications
- Device Type: Switch - 24 ports - managed
- Enclosure Type: Rack-mountable - 1U
- Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit SFP
- Power Over Ethernet (PoE): PoE+ (IEEE 802.3at)
- PoE Budget: 370 Watts
Performance:
- Switching capacity: 88 Gbps
- Forwarding performance (64-byte packet size): 130.95 Mpps
- MAC Address Table Size: 32,000 entries
- Routing Protocol: RIP-1, RIP-2, HSRP, VRRP, OSPFv2, EIGRP, static IP routing, policy-based routing (PBR)
- Jumbo Frame Support: 9198 bytes
- Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, RMON, Telnet, HTTP, HTTPS, TFTP, SSH, CLI
Features:
- Layer 2 switching
- Layer 3 switching
- VLAN support
- Quality of Service (QoS)
- Auto-negotiation
- Auto-uplink (auto MDI/MDI-X)
- IGMP snooping
- Broadcast Storm Control
- DHCP snooping
- Access Control List (ACL) support
- Port Security
- IPv6 support
- Power Over Ethernet (PoE):
- PoE budget: 370 W
- Max. PoE power per port: 30 W (IEEE 802.3at)
- Power: AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH): 44 cm x 31.2 cm x 4.45 cm
- Weight: 5.35 kg
Environmental Parameters:
- Min Operating Temperature: -5°C
- Max Operating Temperature: 45°C
- Humidity Range Operating: 5 - 90% (non-condensing)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az
