Description

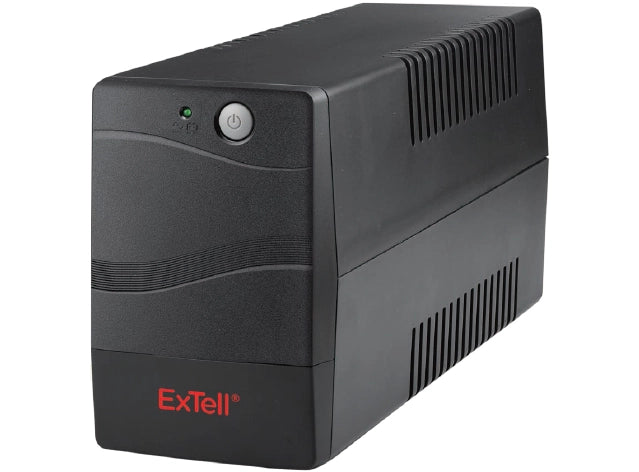

ExTell Atom 1000VA Line Interactive UPS Desk Type Battery Backup (EATM1000CD)
Key Features
- Model: EATM-1000CD
- Capacity: 1000VA/600W
INPUT
- Nominal Voltage: 22/230/240 VAC
- Voltage Range: -35% to +25%
- Frequency Range: 50 or 60 Hz (Auto Sensing)
OUTPUT
- Voltage Regulation: AC Mode / Battery Normal: 220/230/240 VAC ± 10%
- Frequency: 182 ~ 253 VAC at 100% load; 121 ~ 153 VAC at <63% load
- Waveform: 50/60 Hz (Auto sensing)
- Transfer Time: 40 Hz ~ 70 Hz
- Outlet Configuration: IEC X 2 PCS + German or Universal X 4 PCS
BATTERY
- Voltage: 24VDC
- Type: 12V/7Ah x 2 PC
- Recharge Time: 5 hours to 90% after complete discharge
- Safety Protection: Over Charge and Over Discharge Protection
- Advanced Battery Management: Yes
DISPLAY
- LCD Display: Input and Output Voltage & Frequency, Load%, Battery%
AUDIBLE ALARM
- Battery Mode: Two short tones every 8 seconds
- Low Battery: Four short tones every second
- Overload: Red LED Flashing, Buzzer beeping continuously
- Fault: Beeping continuously
MANAGEMENT
- Smart USB: Software supporting Windows 10
ENVIRONMENT
- Operating Temp: 0 ~ 40°C
- Relative Humidity: 0 ~ 95% non-condensing
- Acoustic Noise: <40db at 1M
PHYSICAL
- Dimensions: 343 * 135 * 208 mm
