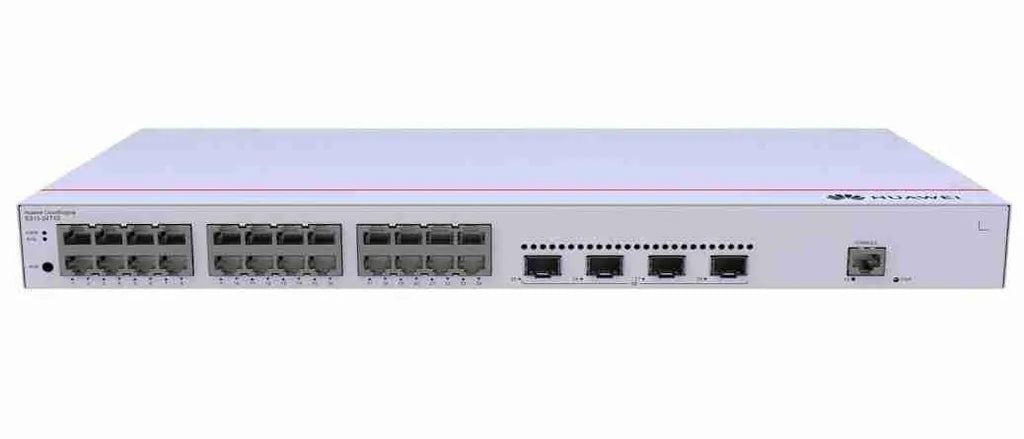

Huawei S310-24T4S 24-Port Non-PoE Network Switch - L2+ (static router), 24*10/100/1000 BASE-T Ports, 4*GE SFP Ports

Huawei S310-24T4S 24-Port Non-PoE Network Switch - L2+ (static router), 24*10/100/1000 BASE-T Ports, 4*GE SFP Ports

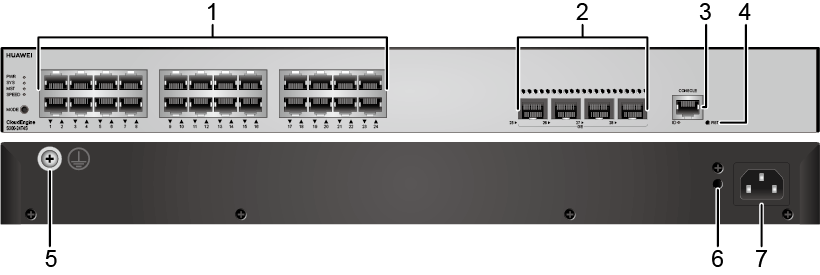

Key Features

• • Twenty-four 10/100/1000BASE-T Ports
  • Four 1000BASE-X Ports
  • One Console Port
  • RST Button:
    • NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the button.
  • Ground Screw
  • Jack for AC Power Cable Locking Strap:
    • NOTE: The AC power cable locking strap is not delivered with the switch.
  • AC Socket

• Ports:

  • 10/100/1000BASE-T Port: RJ45, a 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. Available components: Ethernet cable.
  • 1000BASE-X Port: SFP, a 1000BASE-X port can send and receive data at 100 or 1000 Mbit/s. Available components include:
    • FE SFP/eSFP optical modules (applicable in V200R021C00 and later versions)
    • GE eSFP optical modules
    • GE-CWDM eSFP optical modules
    • GE-DWDM eSFP optical modules
    • GE SFP copper module
    • Industrial optical modules (only optical modules with 1 Gbit/s transmission speed and transmission distances less than or equal to 10 km are supported)
    • 10GE SFP+ optical modules (only used for stack connection, OSXD22N00 not supported)
    • 10GE-CWDM SFP+ optical modules (only used for stack connection)
    • 10GE-DWDM SFP+ optical modules (only used for stack connection)
    • 1 m and 3 m SFP+ high-speed copper cables (only used for stack connection)
    • 3 m and 10 m SFP+ AOC cables (only used for stack connection)
    • 0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
  • Console Port: RJ45, the console port is connected to a console for on-site configuration. Available components: Console cable.

• Indicators and Buttons:

  • The S300-24T4S has similar indicators to those on the S300-24P4S except that the S300-24T4S does not have a PoE mode indicator. For details, see the S300-24P4S.

• Power Supply System: The switch has a built-in AC power module and does not support pluggable power modules.

• Heat Dissipation System: The switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side. When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.

• Technical Specifications:

  • Dimensions without Packaging (H x W x D):
    • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
    • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
  • Dimensions with Packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
  • Chassis Height [U]: 1 U
  • Weight without Packaging: 2.45 kg (5.4 lb)
  • Weight with Packaging: 3.34 kg (7.36 lb)
  • Typical Power Consumption: 32.7 W
  • Typical Heat Dissipation: 111.58 BTU/hour
  • Maximum Power Consumption: 47.6 W
  • Maximum Heat Dissipation: 162.42 BTU/hour
  • Static Power Consumption: 18.4 W
  • MTBF: 66.16 years
  • MTTR: 2 hours
