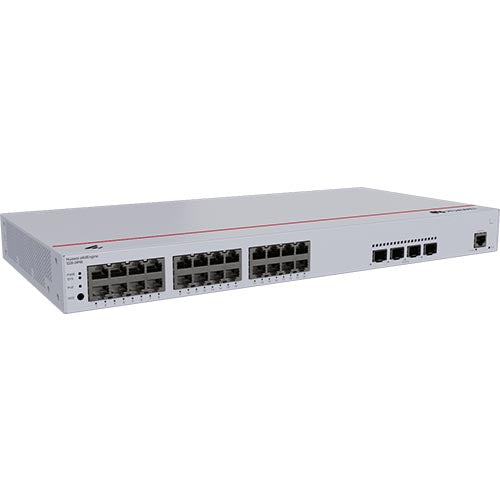

Huawei eKitEngine S220-24p4X 24-Port PoE Network Switch - 24*10/100/1000 BASE-T Ports(400W PoE+), 4*10GE SFP+ Ports, Built-in AC power

Huawei eKitEngine S220-24p4X 24-Port PoE Network Switch - 24*10/100/1000 BASE-T Ports(400W PoE+), 4*10GE SFP+ Ports, Built-in AC power

Key Features

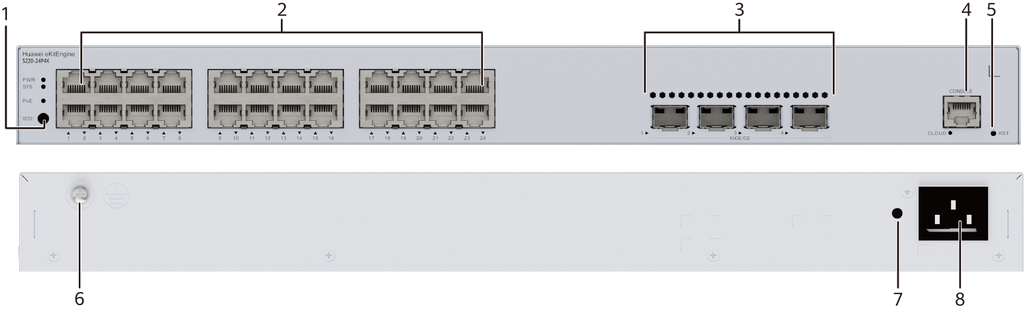

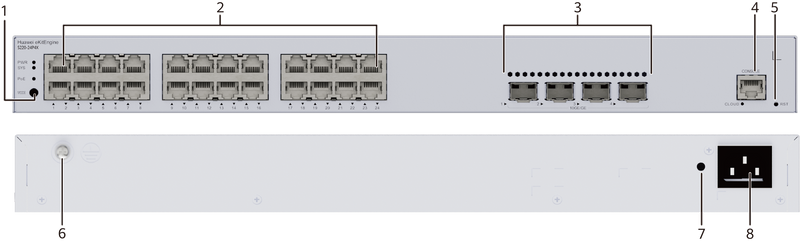

Ports:

• 10/100/1000BASE-T port:

  • Connector Type: RJ45
  • Description: A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.
  • Available Components: Ethernet cable

• 10GE SFP+ port:

  • Connector Type: SFP+
  • Description: A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.
  • Available Components:
    • GE eSFP optical modules
    • GE-CWDM eSFP optical modules
    • GE-DWDM eSFP optical modules
    • GE SFP copper module
    • 10GE SFP+ optical modules
    • 10GE-CWDM SFP+ optical modules
    • 10GE-DWDM SFP+ optical modules
    • 1 m and 3 m SFP+ high-speed copper cables
    • 10 m SFP+ AOC cables

• Console port:

  • Connector Type: RJ45
  • Description: The console port is connected to a console for on-site configuration.
  • Available Components: Console cable

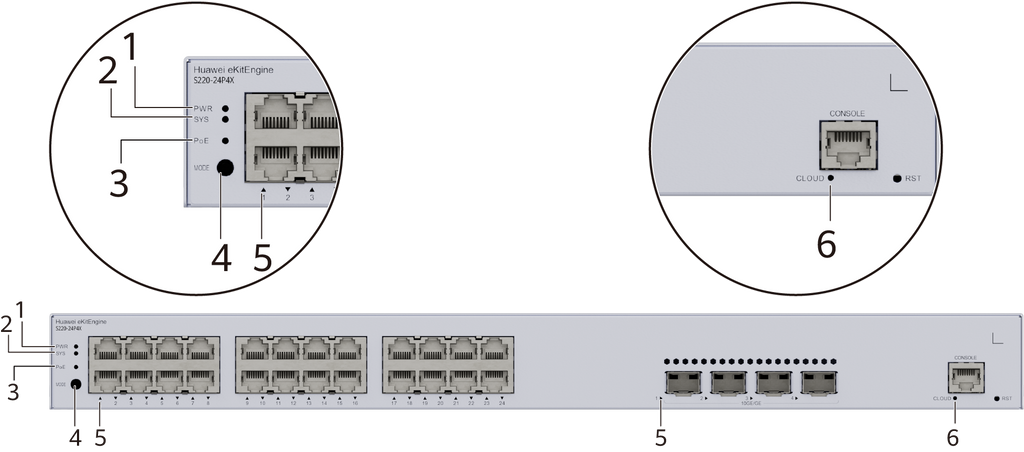

Indicators and Buttons

• PWR (Power module indicator):

  • Color:
    • Off: The switch is powered off.
    • Green (steady on): The power supply is normal.

• SYS (System status indicator):

  • Color:
    • Off: The system is not running.
    • Green (fast blinking): The system is starting.
    • Green (steady on): The system is preparing to start (up to 30 seconds).
    • Green (slow blinking): The system is running normally.
    • Red (steady on): The system does not work normally after registration, or a fan/temperature alarm has been generated.

• PoE (PoE indicator):

  • Color:
    • Off: The PoE mode is not selected.
    • Green (steady on): The PoE mode is selected, showing the PoE status of each port.

• MODE (Mode switch button):

  • Function: Pressing this button changes the service port indicators to PoE mode and vice versa. If not pressed within 45 seconds, it restores to the default mode.

• CLOUD (Cloud indicator):

  • Color:
    • Off: The device is not in the cloud management state.
    • Blue (fast blinking): The device is connecting to the cloud.
    • Blue (slow blinking): The device is in the cloud management state.

Service Port Indicators

• Default Mode:

  • Off: The port is not connected or has been shut down.
  • Green (steady on): A link has been established on the port.
  • Green (blinking): The port is sending or receiving data.

• PoE Mode:

  • Off: The port is not providing power to a powered device (PD).
  • Green (steady on): The port is providing power to a PD.
  • Green (blinking): The power of the PD exceeds the port's capacity or does not comply with IEEE standards.
